1990 kdx200 water pump seal position

Post by Kodazak »

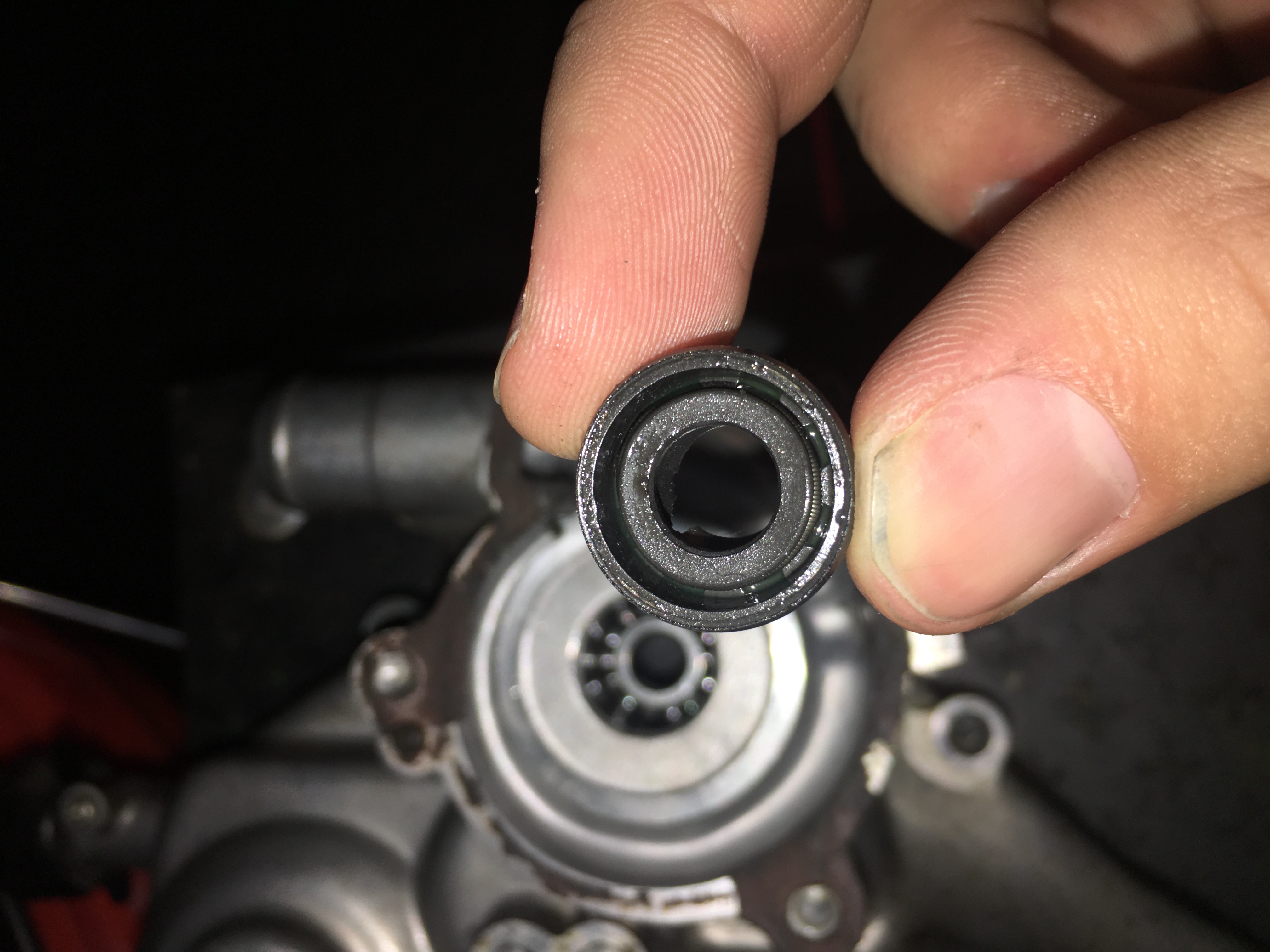

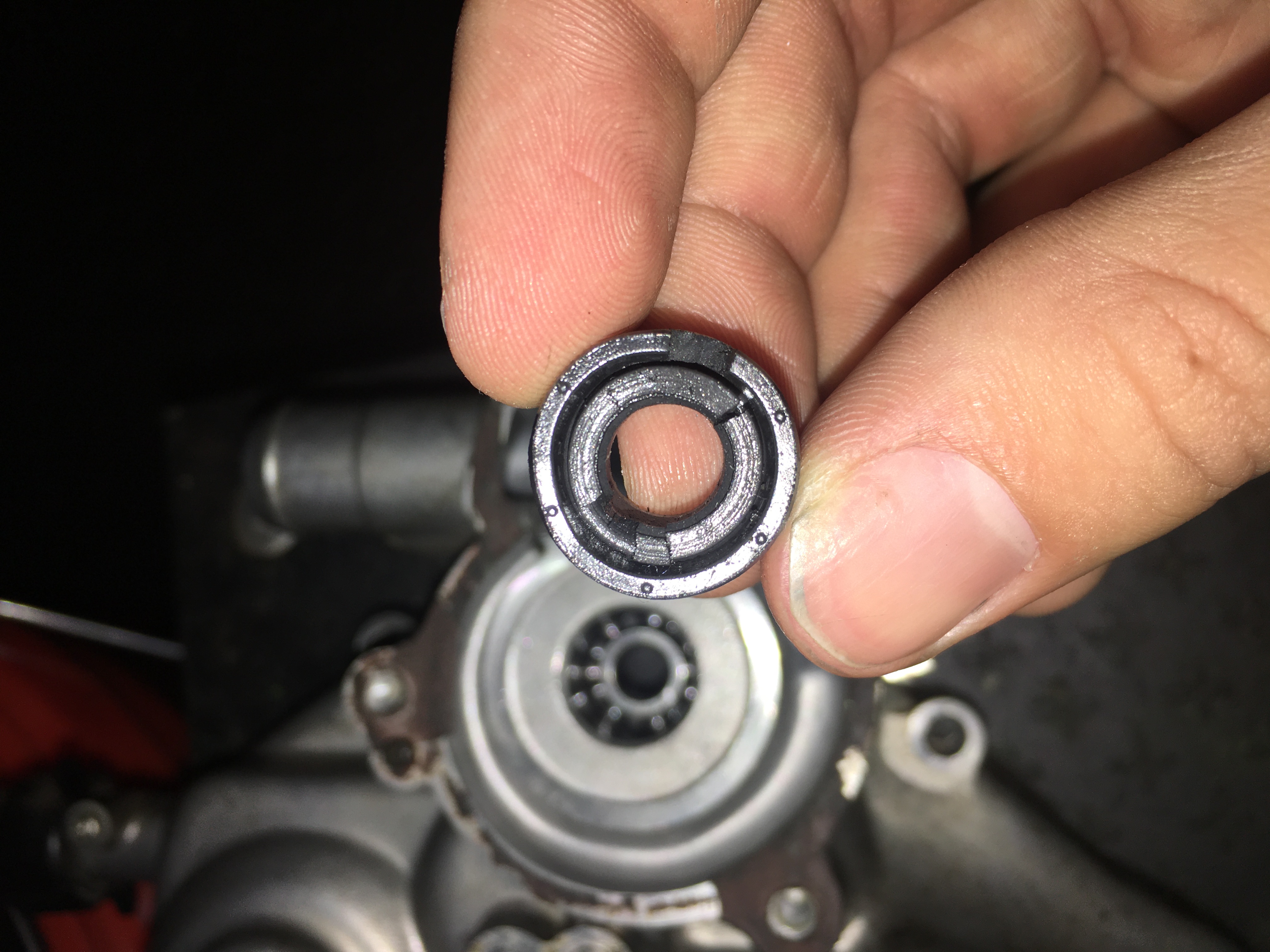

Hello everybody I have 1990 kdx200 I’m rebuilding and I’m just wondering how this water seal pump gets installed . Right side picture or left ? I forgot to check before I disassembled thank you !
Attachments
Top
User avatar
Chuck78
Gold Member
Gold Member
Posts: 1361
Joined: 06:20 pm Nov 30 2016
Country: USA
Location: Columbus, OH
Has thanked: 128 times
Been thanked: 60 times

Re: 1990 kdx200 water pump seal position

Post by Chuck78 »

I'm guessing with the spring on the oil facing side? Just a guess...

I know there were some differences with the various years of E-Series as far as the parts in the shaft stack of water pump pieces. I run two H-Series bikes though, so I'm of little help beyond that.
Try YouTube video tutorials???
Last edited by Chuck78 on 07:42 am Dec 06 2023, edited 1 time in total.
'97 KDX220R - purple/green! - KLX forks, Lectron, Tubliss
'97 KX125 hybrid build! - KDX220 engine, '25 KX450X suspension, titanium hardware, lots of mods purple/green!
'99 KDX220R project - '98/'01 RM125 suspension, Titanium hardware, Lectron Billetron, Tubliss
'77 Suzuki PE250 & '83 PE175 Full Floater - restomod builds
'77 Suzuki GS750-844cc, '77 GS400 & '77 GS550 big bore builds
'62 GMC 1000 Panel Truck
'88 Suzuki Samurai TDI/Toyota swap
'88 Toyota 4x4 pickup
Top
User avatar
rungrandpa
Supporting Member I
Supporting Member I
Posts: 233
Joined: 11:35 pm May 26 2018
Country: U.S.A.
Has thanked: 1 time

Re: 1990 kdx200 water pump seal position

Post by rungrandpa »

Spring goes inside.
