Assembly time
-
Pizzaboy
- Member
- Posts: 3
- Joined: 10:48 am Nov 21 2025
- Country: Usa
Assembly time

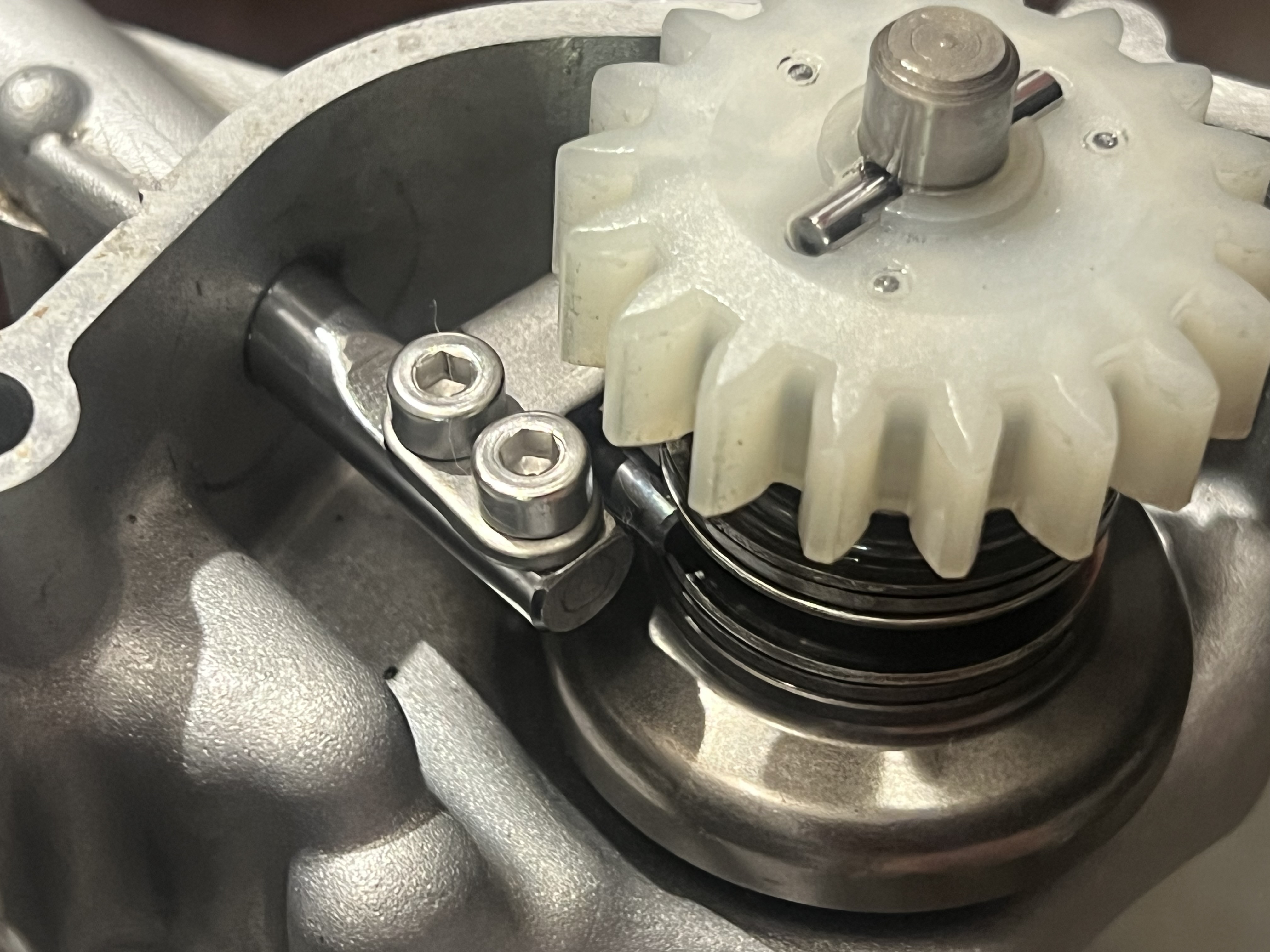

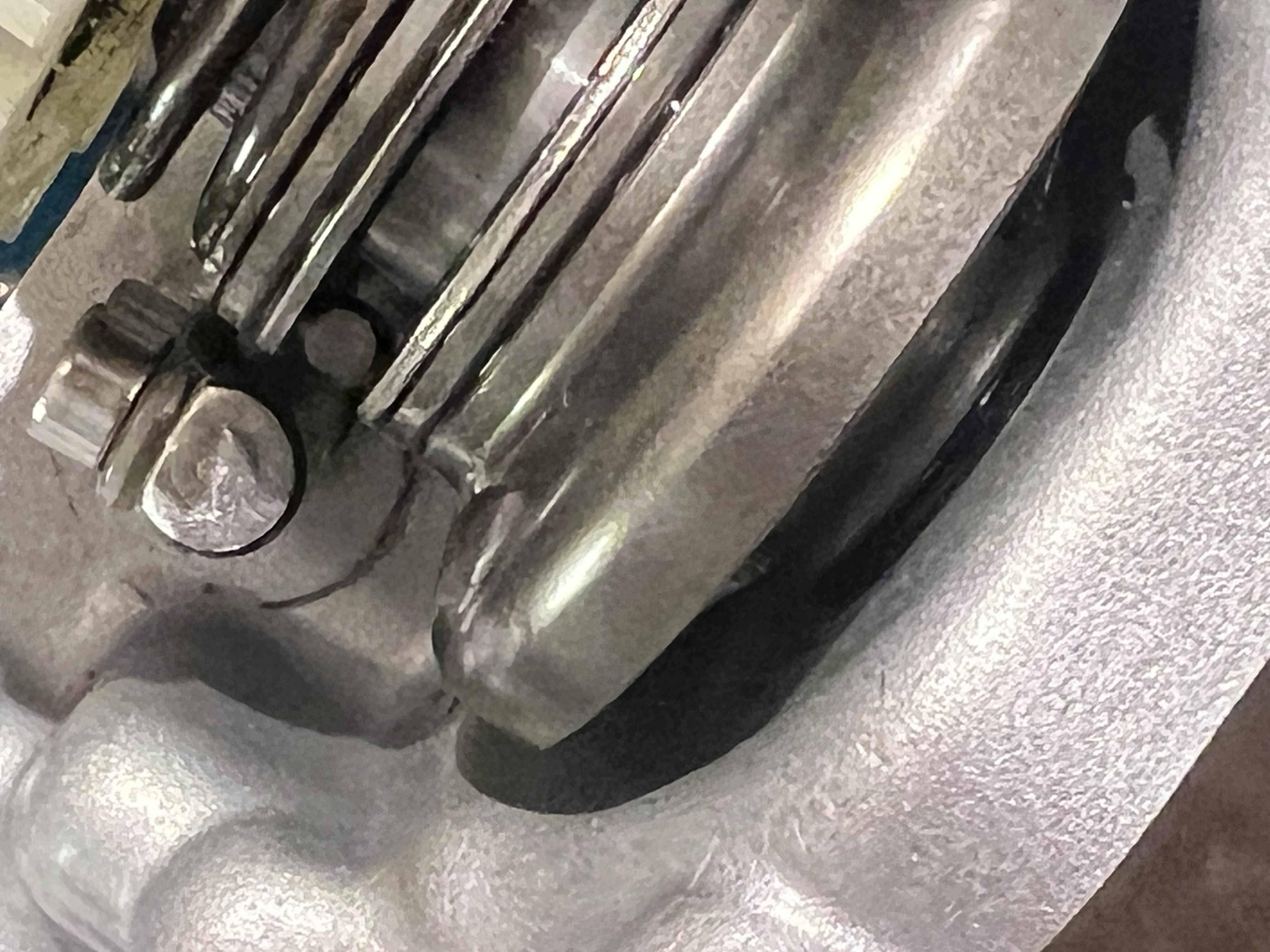

Time to assemble shaft lever and weight. Not quite sure what Im doing. How does this look?
- Attachments
-
- IMG_2283.jpeg (1.69 MiB) Viewed 806 times
-
- IMG_2282.jpeg (1.56 MiB) Viewed 806 times
-
Chuck78
- Gold Member
- Posts: 1342
- Joined: 06:20 pm Nov 30 2016
- Country: USA
- Location: Columbus, OH
- Has thanked: 114 times
- Been thanked: 55 times
Re: Assembly time
That looks correct. Be certain to never tighten or loosen the left hand thread nut on the other end of that shaft without holding it very firmly in place with a backup wrench, and also while observing that it is a Left Hand Thread fastener....
If not handled properly as described, those pins will weaken and snap off and get loose in the gearbox or clutchcase area and destroy expensive gears and possibly leave you stranded....
If not handled properly as described, those pins will weaken and snap off and get loose in the gearbox or clutchcase area and destroy expensive gears and possibly leave you stranded....
