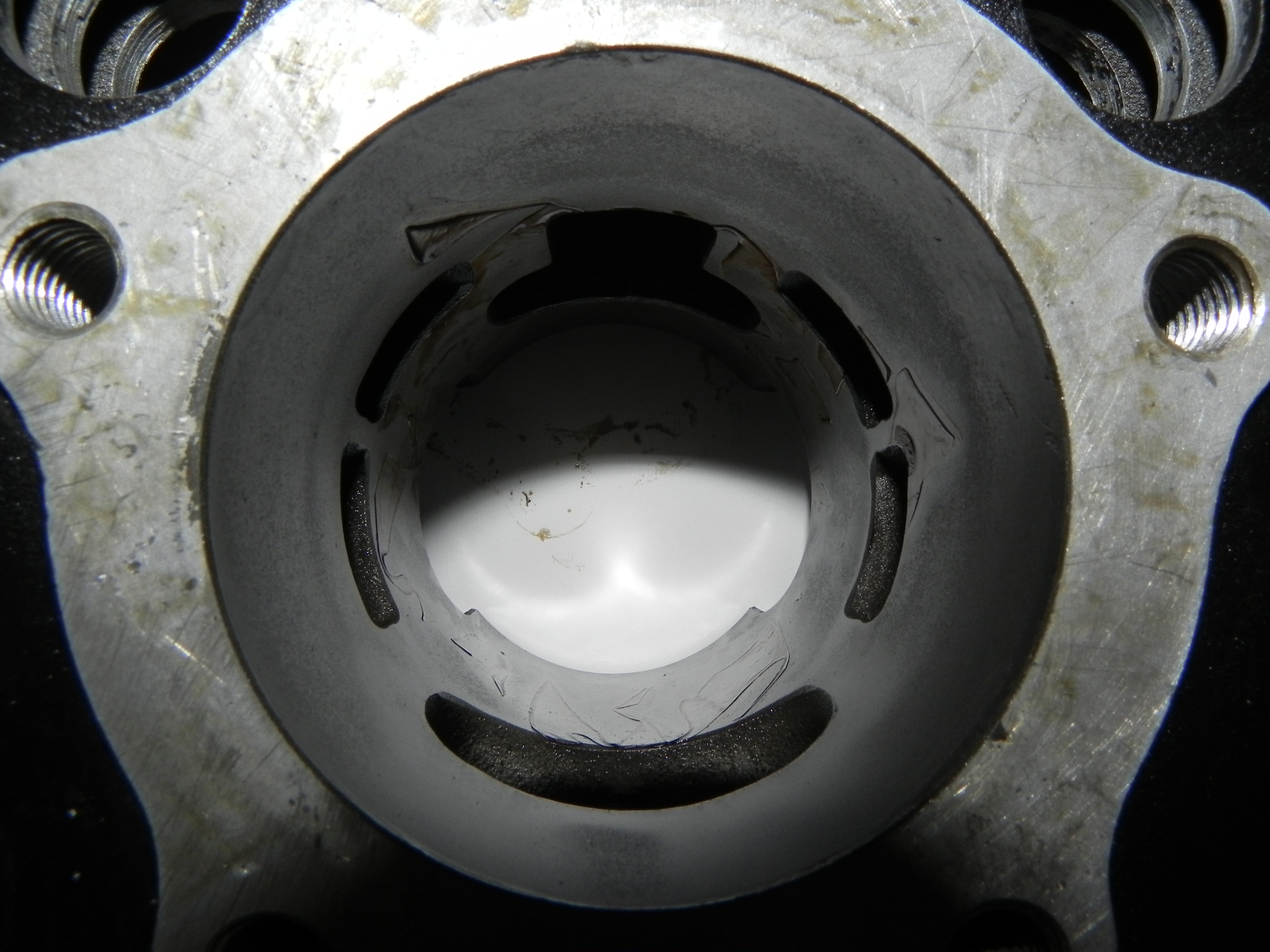

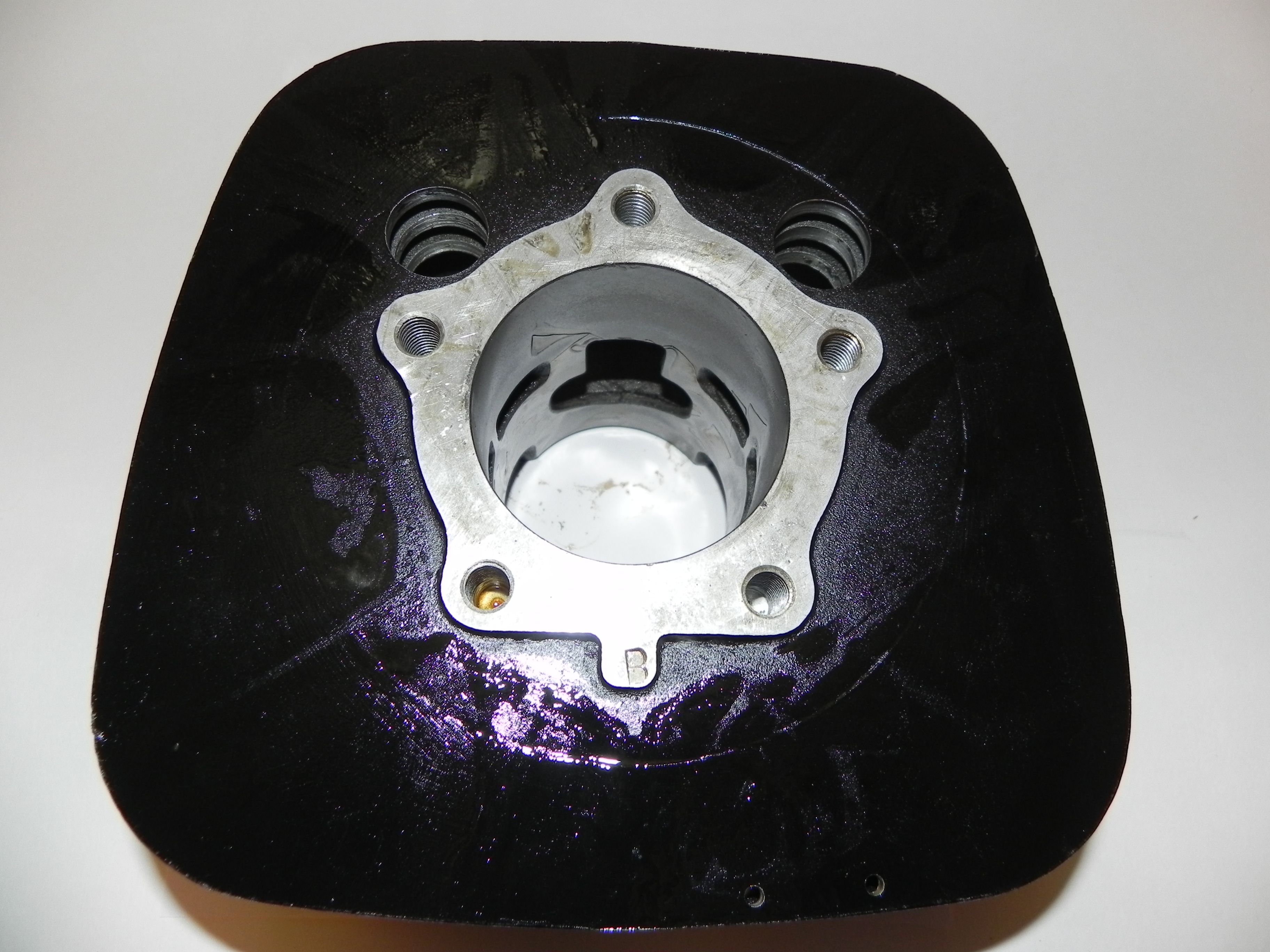

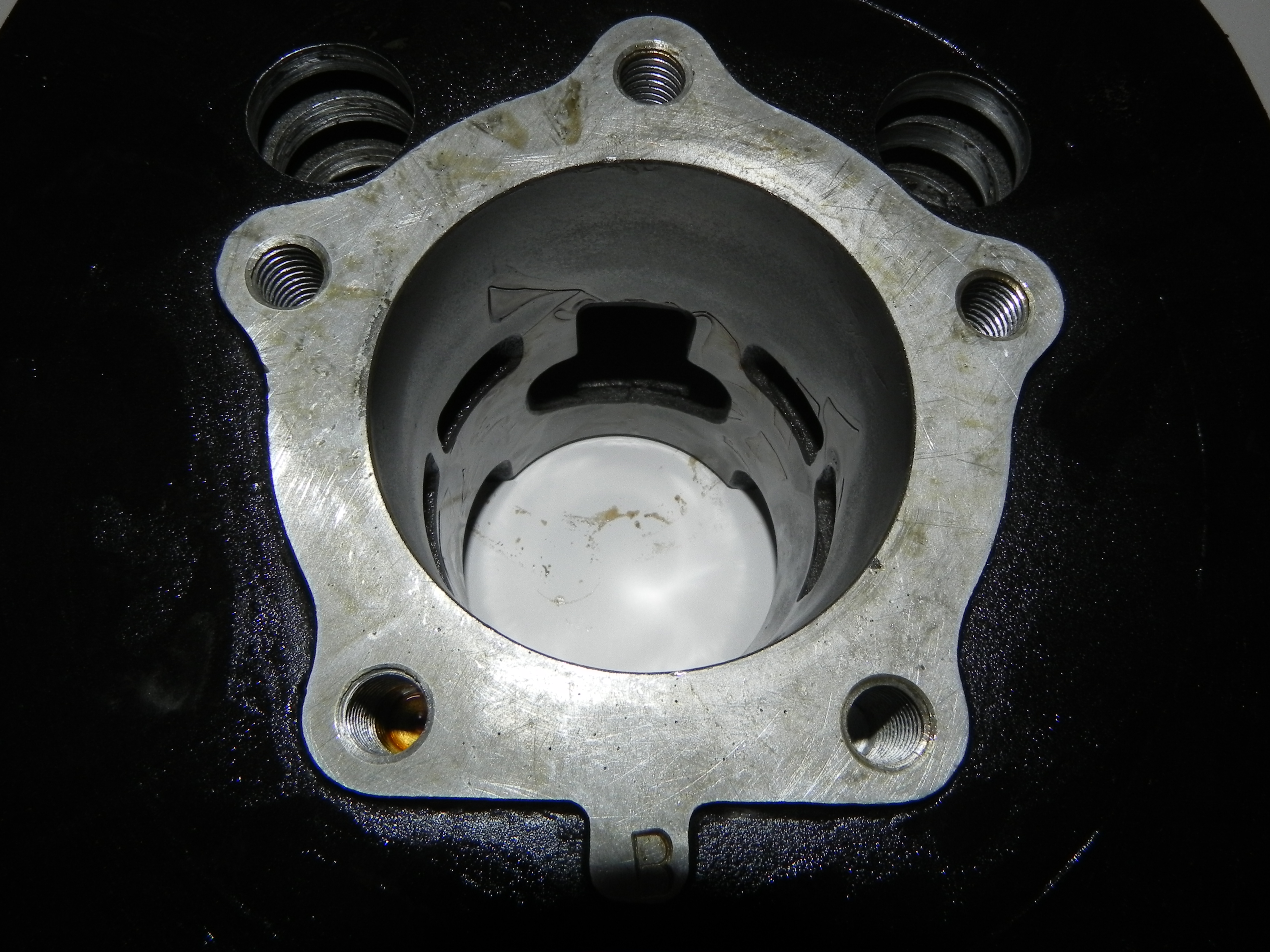

Here are some pictures of a NOS KDX175 cylinder I had. Please note that the finish is smooth, without cross-hatching that some may see on aftermarket plating or other non-Electrofusion OEM cylinders. Over the years, I have read MANY posts from people on the internet stating that someone posting pics of an Electrofusion cylinder has a completely worn out cylinder. "All the cross-hatching is worn off.", etc.
I have a new 1989 - 1994 KDX200 cylinder that is the same as this one.
This cylinder has Kawasaki's brown preservation oil on it, so it looks like stains or something on the surface.
One can open the images in a new window to see them MUCH larger.
Thanks.
