My recently acquired KDX220 did not have a kickstand. :roll: After deliberating the acquisition of an OEM kickstand, I finally decided to install the Trail Tech kickstand.

I cut to length a 3/8-inch OD, 1/4-inch ID, steel bushing to fill the hole for the subframe mounting strut. I then inserted a 1/4-inch bolt, and nyloc nut, to secure the subframe strut, and to serve as an anchor for the top of the kickstand spring.

Once installed, the Trail Tech kickstand was much too long for my bike. Therefore, I pulled out the nylon foot, and cut 2 inches from the bottom of the kickstand. I used a large drill bit to extend the hole for the nylon foot deeper into the kickstand, and I reinstalled the nylon foot.

To allow the kickstand to swing farther forward when lowered, I used an angle grinder to cut a different angle into the bottom portion of the mounting bracket.



Taking my first ride today, the kickstand worked well! However, I am going to periodically inspect all bolts to make sure they are still tight, and secure. :wink:

Spud :grin:
98 KDX 220, 05 Honda XR650L, 06 Zongshen 200GY-2

User avatar
Slick_Nick
Supporting Member
Posts: 966
Joined: 10:06 pm Oct 22 2009
Country: Canada
Location: Calgary, Alberta
Contact:

my new trail tech kickstand.....

Post by Slick_Nick » 04:53 pm May 01 2012

Can someone please take a pic of the kickstand in the raised position? Does it fit behind the number plate?
'00 KDX 220R

User avatar
Tedh98
Supporting Member II
Supporting Member II
Posts: 1576
Joined: 01:08 pm Mar 20 2009
Country:
Location: Atlanta, Georgia
Contact:

my new trail tech kickstand.....

Post by Tedh98 » 05:03 pm May 01 2012

Slick_Nick wrote:Can someone please take a pic of the kickstand in the raised position? Does it fit behind the number plate?

The 1st post of the thread has that picture.

User avatar
19Delta
Supporting Member
Posts: 168
Joined: 03:12 pm May 21 2015
Country:

Re: my new trail tech kickstand.....

Post by 19Delta » 10:21 pm Mar 02 2016

Thanks to everybody for posting this idea, and to B737driver for selling me his used trail tech kickstand. I mounted mine this evening. It didn't seem as strong as it could be, so I drilled and tapped the top hole and used a nut behind it as a spacer. I spaced the bottom it a little farther than some, as it seemed to bring the other two mounting points "square" with each other. In the end, I like it a lot. Bonus, the stand tucks up perfectly behind the number plate with a little tension like it was meant to be! Let's see how the whole thing holds up.

Sent from my SM-G900V using Tapatalk

User avatar
19Delta
Supporting Member
Posts: 168
Joined: 03:12 pm May 21 2015
Country:

Re: my new trail tech kickstand.....

Post by 19Delta » 10:23 pm Mar 02 2016






User avatar
B737driver
Gold Member
Gold Member
Posts: 484
Joined: 01:11 pm Dec 02 2011
Country:
Location: Heath, Texas

my new trail tech kickstand.....

Post by B737driver » 02:31 pm Mar 04 2016

Nicely done. That extra bolt going through the frame should give it added stability. Glad it worked out for you.
Live to Fly
Fly to Live

rhody_romes
Member
Posts: 18
Joined: 10:25 am Jun 07 2016
Country:
Location: Rhode Island

Re: my new trail tech kickstand.....

Post by rhody_romes » 03:32 pm Aug 11 2016

I'm having trouble getting the plastic piece on the end off (the foot). Any suggestions?
2000 KDX200

rehammer81
Member
Posts: 33
Joined: 04:54 pm Jul 24 2016
Country:

Re: my new trail tech kickstand.....

Post by rehammer81 » 09:20 pm Sep 18 2016

rhody_romes wrote:I'm having trouble getting the plastic piece on the end off (the foot). Any suggestions?
I have the same problem. I can't for the life of me get that plastic foot out. I also can't get the spring attached at both ends. Making it more difficult is that the hooks on my spring at turned 90 degrees to each other and I need them parallel.

User avatar
Tyl3r
Platinum Member
Platinum Member
Posts: 1227
Joined: 06:51 pm Nov 26 2012
Country: USA
Location: SW Pennsylvania

Re: my new trail tech kickstand.....

Post by Tyl3r » 07:15 am Sep 19 2016

For the spring, bolt the spring to the top hole like shown in photos. Then use some vice grips to stretch the spring and twist it the 90 degrees to attach it to the kicker. I just did it the other day, it wasn't too bad; just make sure to use good vice grips that are tight!

I cannot seem to get the freakin foot out either! Lol The one that I have (maybe you guys as well) looks like an updated design of what was originaly posted here? Unless I can some up with something better, I think I am going to try to cut the 1" out of the kickstand with the foot still attached. I will just try to not go into the plastic when I do. Maybe it would come out easier then. If I do end up messing up the plastic piece, I can try to tap the bottom of the stand and maybe bolt a little plate to it.
04/05 KX220 Hybrid all decked out
18 KTM 500 EXC-F Sumo toy

rehammer81
Member
Posts: 33
Joined: 04:54 pm Jul 24 2016
Country:

Re: my new trail tech kickstand.....

Post by rehammer81 » 09:18 am Sep 19 2016

Tyl3r wrote:For the spring, bolt the spring to the top hole like shown in photos. Then use some vice grips to stretch the spring and twist it the 90 degrees to attach it to the kicker. I just did it the other day, it wasn't too bad; just make sure to use good vice grips that are tight!

I cannot seem to get the freakin foot out either! Lol The one that I have (maybe you guys as well) looks like an updated design of what was originaly posted here? Unless I can some up with something better, I think I am going to try to cut the 1" out of the kickstand with the foot still attached. I will just try to not go into the plastic when I do. Maybe it would come out easier then. If I do end up messing up the plastic piece, I can try to tap the bottom of the stand and maybe bolt a little plate to it.
So right after I posted last night I frustratingly hate twisted the foot off. Got it! I used some channel locks with the stand in a vice and just grabbed the sides of the foot and twisted the hell out of it. It finally gave away. It is glued in with some sort of red material. Then I just kept twisting and pulling at the same time and worked it out. The inserted portion of the foot is just over an inch in length. The channel locks chewed up the side of my foot a little though. It was the only way I could get enough leverage though.

I'll give the vice grips a try. Thanks.

rehammer81
Member
Posts: 33
Joined: 04:54 pm Jul 24 2016
Country:

Re: my new trail tech kickstand.....

Post by rehammer81 » 09:54 am Oct 06 2016

Got the new kickstand on finally. Only took about an inch off the end. Didn't have to redrill to put the foot back on either.

User avatar
Kdxfan4130
Supporting Member II
Supporting Member II
Posts: 112
Joined: 09:24 pm May 30 2019
Country: Usa

Re: my new trail tech kickstand.....

Post by Kdxfan4130 » 05:14 pm Jul 21 2019

Trail tech replaced a kickstand I bought used. It was the older style, not the newer version pictured in the above post. I called about getting a new pivot bolt and the tech sent out everything but the bolt on mounting plate. Totally free. I was amazed at the customer service.
Found a couple pre ‘95 kdx200 bikes for a decent price but holding off for the newer style machines 220 or 200 I won’t complain. But I’d get this kickstand as the placement of the stock stand just seems to be in a bad spot imho.
I had to call them about the kickstand being too long, Tech said use heat to loosen up the adhesive used, red loctite when reinserting into the shortened stand. Quality company with great customer service and tech help.
Restore rather than replace

rtbmrgl
Supporting Member III
Supporting Member III
Posts: 73
Joined: 01:45 pm Dec 25 2019
Country: United States
Location: roseville

Re: my new trail tech kickstand.....

Post by rtbmrgl » 09:39 pm Jan 31 2020

Nice write-up, thread is over a 9 year period :supz: . I plan on installing the same Trail Tech kick stand, I'll post photos on the install.
Here is the Trail Tech part# 5400-00
Mark
Roseville, Ca


'76 Bultaco 143 Frontera
'06 GL1800
'01 KDX200
'97 KDX220r
74 DT360
75 Norton
73 CB500K
63 C200
87 PW50
64 McClane Edger

User avatar
Goat
Supporting Member II
Supporting Member II
Posts: 512
Joined: 03:22 pm Oct 22 2019
Country: USA
Location: Clinton, WA

Re: my new trail tech kickstand.....

Post by Goat » 03:39 am Feb 20 2021

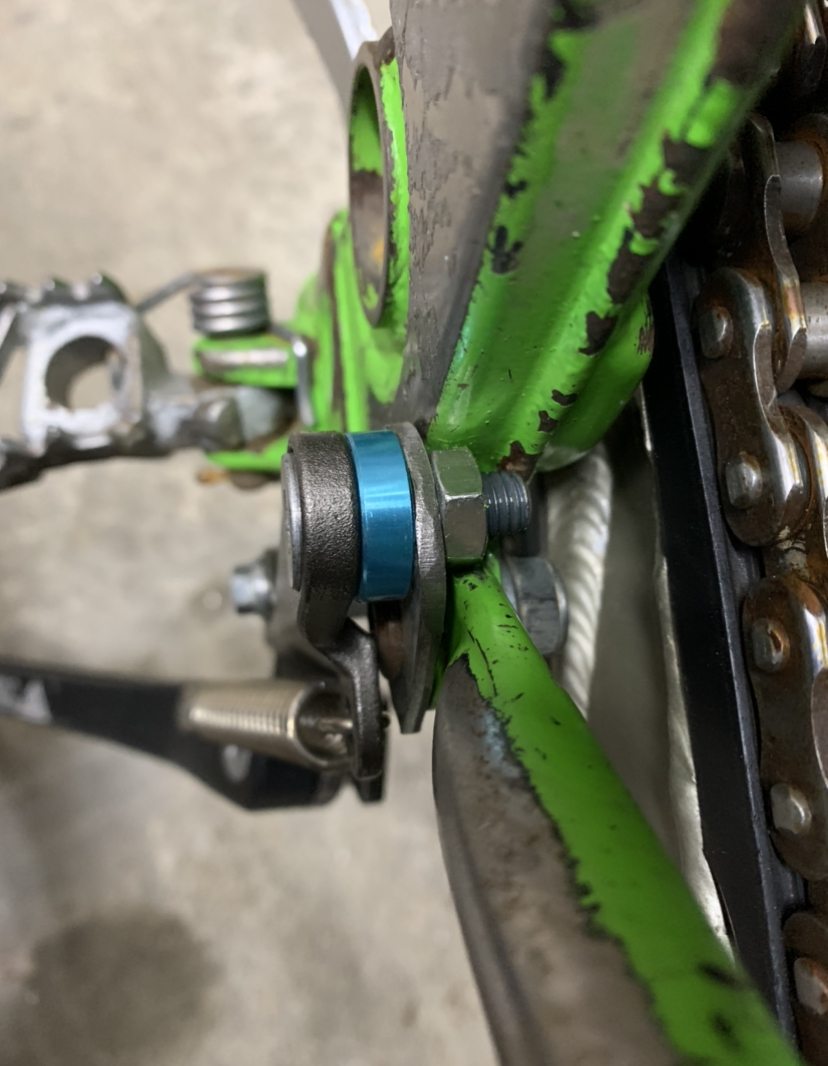

I made a little bracket to connect the frame rail bolt to the main bracket mounting hole.
Attachments
Goat

User avatar
Kdxfan4130
Supporting Member II
Supporting Member II
Posts: 112
Joined: 09:24 pm May 30 2019
Country: Usa

Re: my new trail tech kickstand.....

Post by Kdxfan4130 » 02:00 am Feb 21 2021

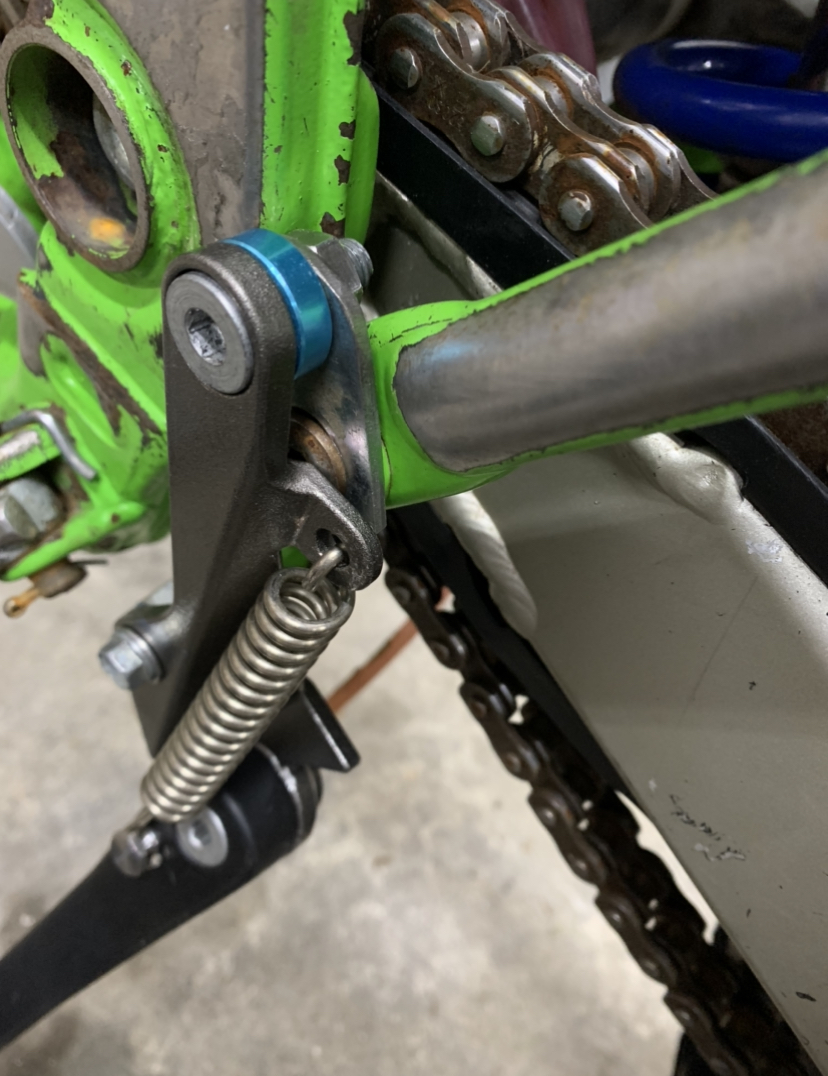

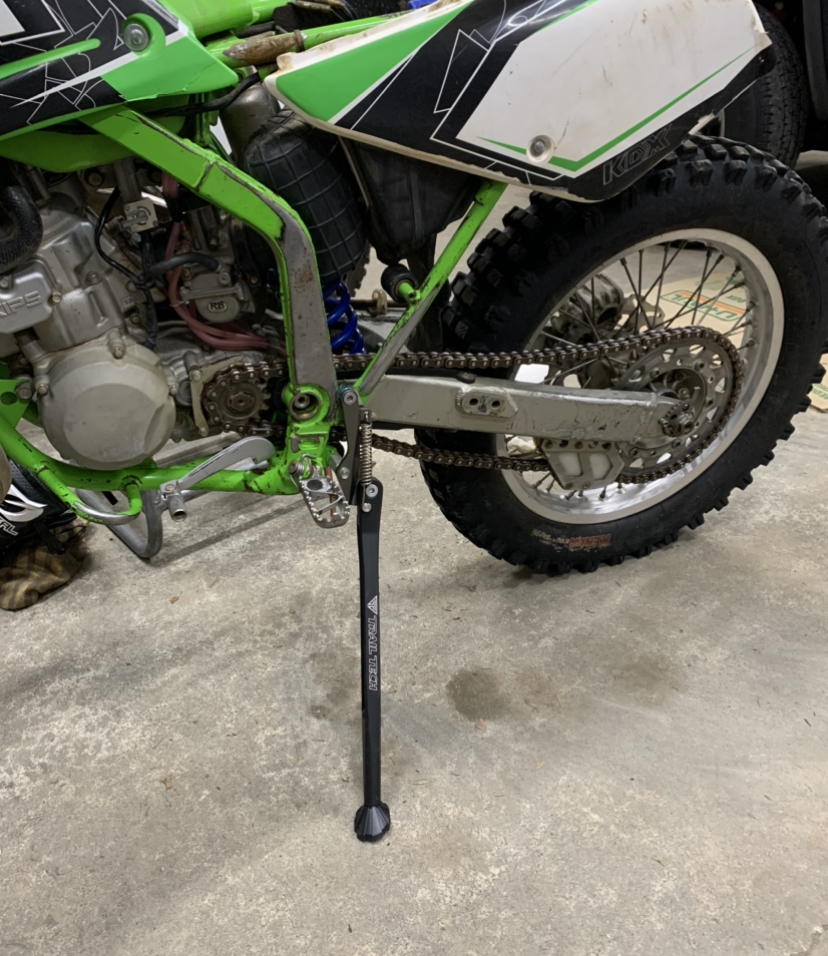

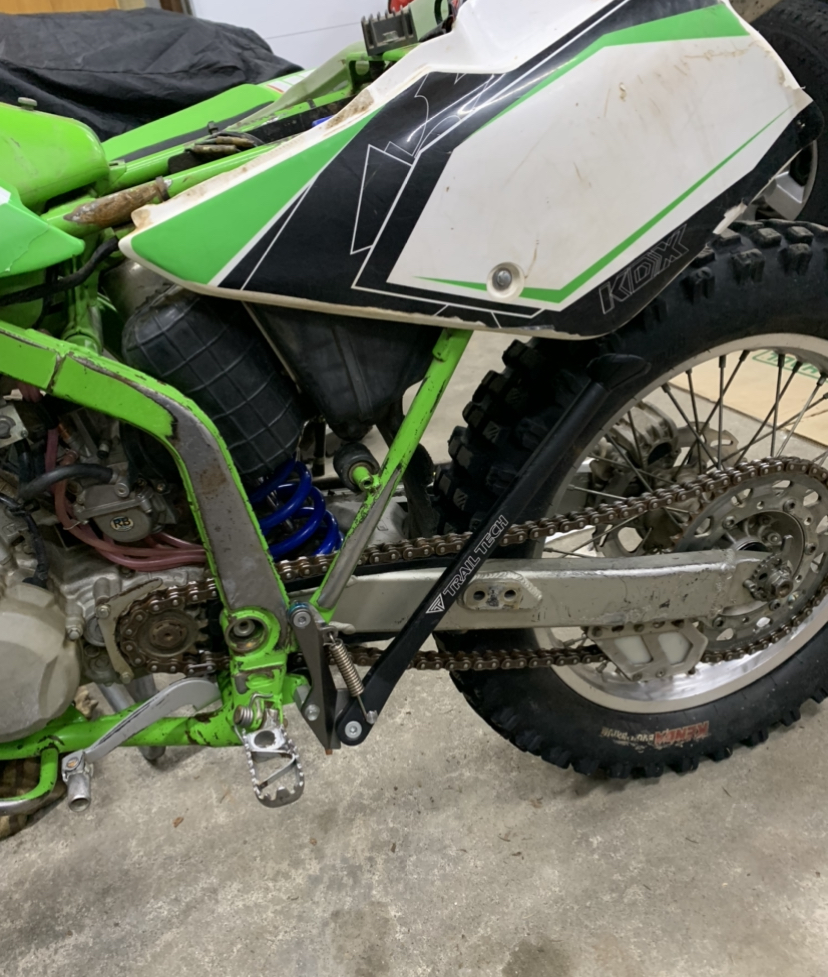

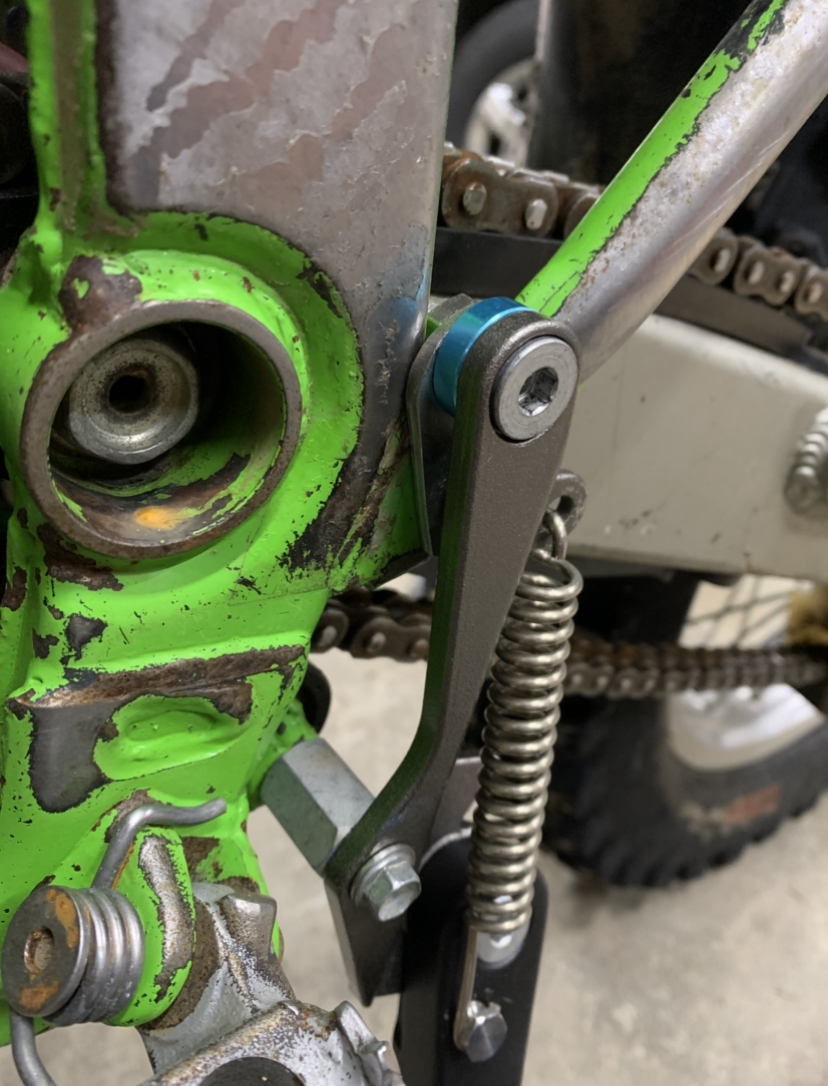

I contacted trail tech about getting a new threaded insert for the older round kick stand, the rep said that was the older kickstand. I bought it used and he said he would send out the newer style kickstand like in the post above. Trail tech sent out everything except the steel bracket that bolts to the frame & footpegs. Lighter and the updated design looks killer. I saw pics of the Pro Moto Billet kick stand and it’s another great design.
Last edited by Kdxfan4130 on 02:31 am Feb 25 2021, edited 1 time in total.
Restore rather than replace

User avatar
KDXGarage
KDXRider.net
KDXRider.net
Posts: 12311
Joined: 06:45 am Nov 01 2004
Country: United States of America
Location: AL, USA
Contact:

Re: my new trail tech kickstand.....

Post by KDXGarage » 05:26 am Feb 21 2021

DAMN! NICE!!
Thank you for participating on kdxrider.net. :bravo:
To post pictures from a device: viewtopic.php?f=88&t=24128

User avatar
GATOROC
Gold Member
Gold Member
Posts: 198
Joined: 12:25 am Mar 06 2019
Country: United States
Location: Colorado Springs, CO

Re: my new trail tech kickstand.....

Post by GATOROC » 10:05 am Feb 21 2021

That new design is sweet! I was a little concerned about the older style bracket where it looked like it hung down lower than the foot peg. The new version looks like it belongs on the KDX! Thanks for sharing!
2000 KDX 220
2004 KDX 200

User avatar
Goat
Supporting Member II
Supporting Member II
Posts: 512
Joined: 03:22 pm Oct 22 2019
Country: USA
Location: Clinton, WA

Re: my new trail tech kickstand.....

Post by Goat » 01:37 am Feb 23 2021

That does look great! What frame is it? I don’t have those overlapping brackets on mine.
Goat

User avatar
Kdxfan4130
Supporting Member II
Supporting Member II
Posts: 112
Joined: 09:24 pm May 30 2019
Country: Usa

Re: my new trail tech kickstand.....

Post by Kdxfan4130 » 02:38 am Feb 23 2021

Looking at it further the pivot does sit higher, keeping it more out of harms way. Nice how the mount is thicker foregoing the need of a spacer to mount it up.
That doubled plate had to have been an addition, that roller looks nice & freshened up tires sprocket hub frame paint shock bottoming rubber
Restore rather than replace

kick
Member
Posts: 24
Joined: 10:23 pm Oct 31 2020
Country: United States
Location: NJ

Re: my new trail tech kickstand.....

Post by kick » 12:21 pm Feb 23 2021

Can you please list the part# for the new design kickstand. Also what year is that frame that it’s mounted on?
