Hi guys as shown in the picture this is a the rear of a 1989 kdx200 that someone has masicured it's I think supposed to go up round the rear mudguard and some what be like a grab handle although thay already have 2? wondering if any one could show me a picture or offer any guidance to what it's supposed to look like as I'm going to fabricate one back on there and need to know what supposed to look like. the rear plastic on bike is off a 95 so ignore that
looking forward to your responses lucus

Hi. Can you post a frame number / VIN? I am thinking that is an "F" or "G" model, not an "E" like was sold in the USA.

The frame would be different than what I am used to in the USA.

It looks like a metal fuel tank / gas tank, rear footpeg mounts, etc.

Don't think wobbly looking one is origanal as you can see inside where the triple clamp stem goes and has lettering behind what I think is origanal frame number also don't think it's the same as in the usa as has 12 digit frame number and not 17 digit vin as usa have. has some other things on frame that might also be able to help forgot to add in other post that it has a stearing lock as well but no locking point in the triple clamp stem so hopefully it's not been frankinsteined by someone thanks again lucus

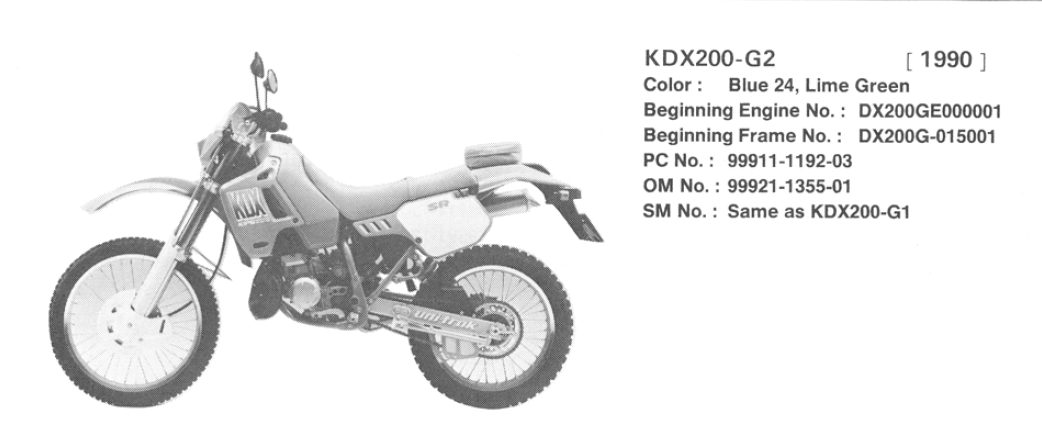

15479 is 1990, as best I can tell from the Model Recogniton manual.
https://en.impex-jp.com/catalogs/moto/k ... -1512.html

https://en.impex-jp.com/catalogs/moto/k ... 89934.html

Thanks for your help will good to have a complete template to work around by any chance can you still find origanal manuals for them

Look on eBay or some similar place if the dealer does not have one for sale.

in the USA, we never got the "F" or "G" models, so anything that is different than an "E" is not covered in any USA manual.
